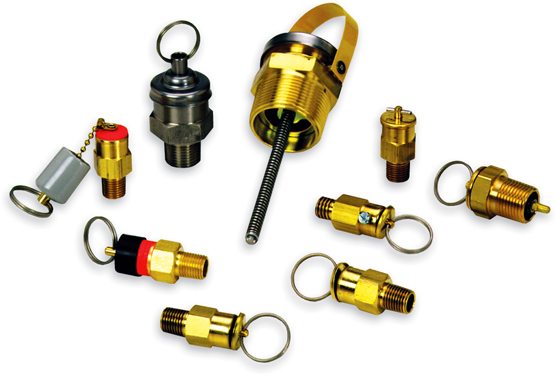

Qualitrol 201/202/205 kleines Druckentlastungsventil



Die mechanische Überdruckschutzeinrichtung sorgt für eine Druckentlastung der Transformatoren bei Überdruckbedingungen und schließt sich automatisch wieder, sobald der Druck abgefallen ist. Erhältlich mit einem Edelstahl Zugring für die manuelle Bedienung. Optionaler Anschlussschutz mit Abdeckung um zu Verhindern, dass Materie in den Ventilkörper eindringt.

Merkmale

  • Standardmodelle haben ein einteiliges Messinggehäuse mit Edelstahlfeder, Zugring und Viton O-Ring-Dichtung
  • Rugged design provides trouble-free over pressure protection
  • All brass and stainless steel external construction
  • Compact, low profile reduces damage risk
  • Weather-resistant Viton O-rings withstand decades of service
  • Stainless steel pull ring permits safe manual bleeding of pressure
  • Meets or exceeds industry standards
  • 10 PSIG valves comply with American National Standards (ANSI) C57.12.20.2007
  • Highly flexible designs for many applications
  • Compatible with hole fittings
  • Many sizes of valves allow for a number of installation options including retrofitting older equipment
  • Identification on valve makes ordering, installing or referencing hassle-free
  • Flow rates available from 35 to 200 SCSM
  • Designs accommodate a range of operating pressures (3.5 psi to 35 psi)
  • Design prevents entry of contaminants
  • Unique configuration inhibits entry of contaminants
  • Covers are standard on most valves
  • Sunlight, oil and ozone resistant polypropylene or PVC cap on indicator models

Optionen

  • Available dual sealing submersible design made entirely from stainless steel for special applications
  • Operating pressure and relief flow rate
  • Visual indicator style
  • Tank connection and sealing systems
  • Komplett aus Edelstahl

Gruppe Created with Sketch. Applications

Für den Überdruckschutz von Transformatoren, Laststufenschaltern und ähnlichen ölgefüllten elektrischen Geräten.

Basic
Qualitrol 201, 202, 205 kleine Druckentlastungsvorrichtungen

Qualitrol 201/202/205 kleines Druckentlastungsventil

Standardmodelle haben ein einteiliges Messinggehäuse mit Edelstahlfeder, Zugring und Viton O-Ring-Dichtung

Rugged design provides trouble-free over pressure protection

All brass and stainless steel external construction

Erfahren Sie mehr
Erweitert
Qualitrol Large Pressure Relief Device LPRD

Qualitrol LPRD / 208/213/216 Großes Druckentlastungsventil

Stainless steel operating valve, fasteners, and hardware

Flange and ring are made from aluminum with a chromate conversion coating with exposed aluminum components receiving an additional epoxy paint coat

Switches can be specified to operate as latching or momentary, SPDT or DPDT, high DC, or low current gold contact type, and with connector, terminal box, or flying lead style connections

Erfahren Sie mehr
Insgesamt
Qualitrol XPRD Extra großes Druckentlastungsventil

Qualitrol XPRD Extra großes Druckentlastungsventil

Corrosion resistant stainless steel directional shield, hardware, and operating valve

50% mehr Tankschutz bei Überdruckereignissen

Larger diameter throat and discharge outlet for increased flow

Erfahren Sie mehr
