AKM 44611/48471 Top-Mounted Thermometer

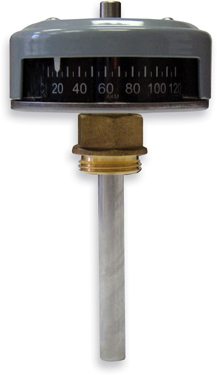

Top Mount Bi-Metal Thermometer Installed at Pocket Well

AKM 44611/48471 Top-Mounted Thermometer with temperature indication and a reset-able maximum temperature pointer offers easy to read temperature indicator installed without draining transformer tank. Most models can be screwed into a pocket (well) that allows units to be exchanged without draining the tank. Made of corrosion-resistant materials for long life and high accuracy performance.


  • Accurate indication with rugged, low profile design
  • Weatherproof to IEC 529 protective class IP54 standards and NEMA 3S rating
  • Provides accuracy within ±2°C
  • Dampened element provides smooth pointer movement
  • Corrosion-resistant materials and design long life
  • Gehäuse und Flansch aus rostfreiem Stahl widerstehen rauen Umgebungen
  • Features a scratch-resistant, UV stabilized polycarbonate lens
  • Quickly see the current and maximum temperature
  • Can be read easily from a distance with a large pointer
  • The lens is made of clear, UV stabilized, molded polycarbonate for easy, scratch-resistant viewing throughout the life of the unit
  • All models feature dustproof, vented design to prevent moisture from accumulating under the lens, keeping the dial face clear for optimal viewing
  • Resettable maximum pointer indicates the highest temperature since last reset
  • Bimetall-Messung mit rücksetzbarem Maximalzeiger
  • Power is not required for function


  • Various temperature ranges
  • Tank connection style, probe length and diameter, compatible well
  • Sealed or vented lens

Gruppe Created with Sketch. Applications

Für die Temperaturanzeige, bei der sich der Messpunkt (der Stutzen bzw. die Geräteaufnahme) auf der Seite der Anlage befindet und leicht abzulesen ist.
