Buchsenüberwachung

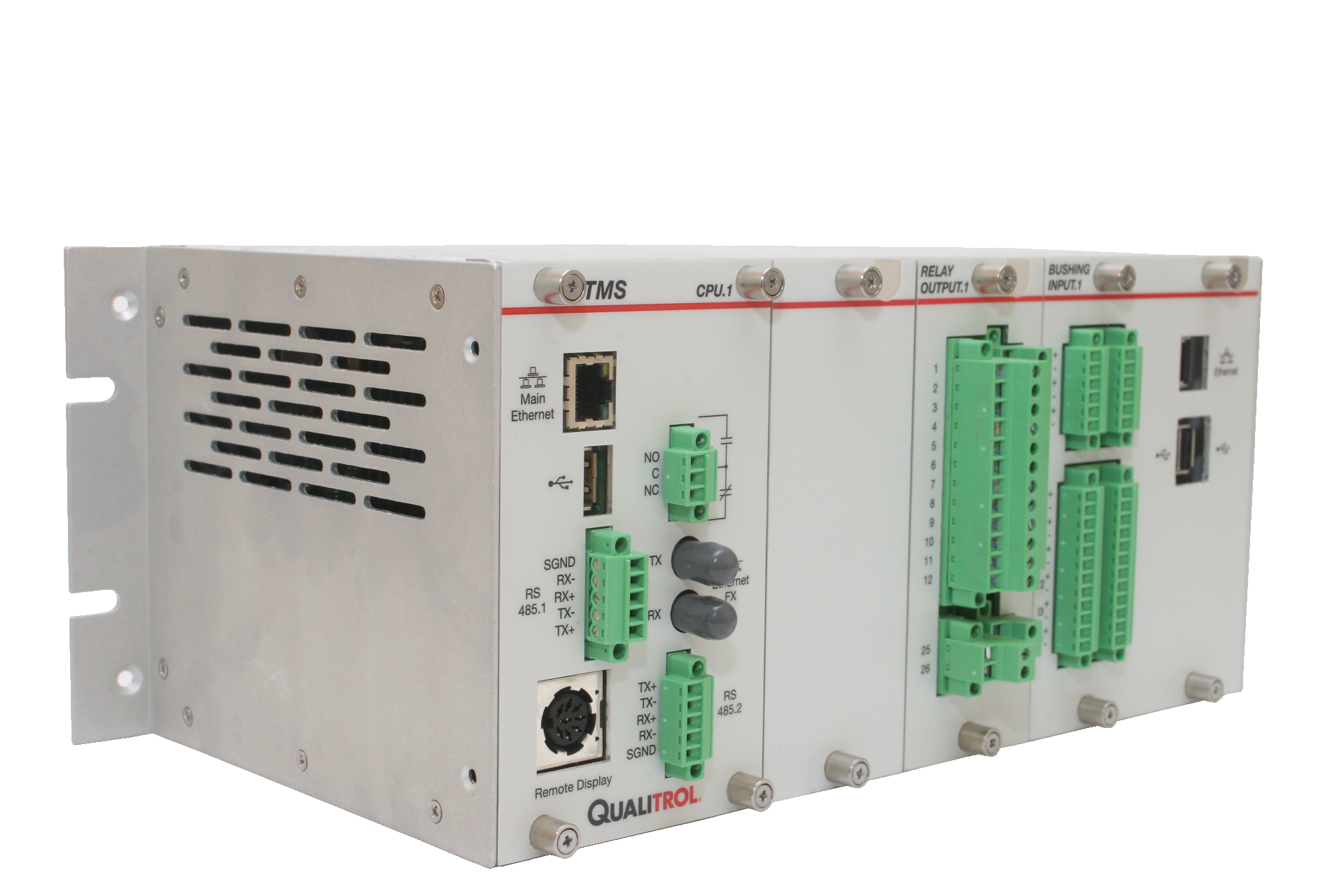

Das Qualitrol Bushing Monitor System ist ein Online-Tanδ (PF) - und Kapazitätsüberwachungssystem für Unterstationen. Er misst die Phasendifferenz, die durch kapazitive Schichten von Durchführungen induziert wird, und berechnet die Änderungsrate, um Defekte in der Durchführungsisolierung vorherzusagen. Es kann Defekte vorhersagen, die mit partiellen Ausfällen, Feuchtigkeit, Kontaktproblemen und der Alterung von Isoliermaterial zusammenhängen.
Merkmale
- Accurate and early incipient fault detection ensures reliable operation and reduces supply outages
- Erzeugt hochgenaue Daten zum Anlagenzustand und reduziert somit die Wartungskosten
- Überwacht einzelne Buchsen ohne die Notwendigkeit einer sekundären Buchse.
- Robust design and excellent interference immunity for measurements under difficult environmental conditions
- User friendly UI, trending, data logging, dashboard.
- Advanced HMI provisions(intelligent data handling, display and interpretation)
- Flexible installation and configuration options to meet customer expectations
- Smart and quick real-time alarming / alerting mechanism
- Remote monitoring and configuration
- Web-basiert, keine spezielle Software erforderlich.
- Expandable and field upgradable without reconfiguration
Optionen
- Unterstützt 1 bis 6 Buchsen unabhängig voneinander.
- 1 Spare/available module to grow with you and your needs (analog signal, digitals)
- Kann 3-Parteien-Geräte und andere Qualitrol Transformer-Monitore (DGA, UHF-Teilentladungssysteme, Entlüfter usw.) integrieren
Applications
The Qualitrol Bushing Monitor System is used to continuously assess the performance of the insulation in bushings so that corrective actions can be taken before any failure occurs. The information obtained from the system is used for condition based maintenance decisions to optimize maintenance expenditure
