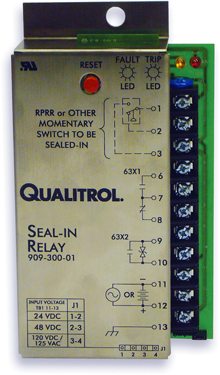

Qualitrol 909 Druckeingangsrelais
m-l Empfohlen für den Einsatz in mittleren und großen Transformatoren mit einem typischen Spannungsbereich von 138 kV bis 345 kV und mehr.
Zur Verwendung mit Qualitrol Schnelldruck Relais der Serie 900/910 und anderen Instrumenten zur Aufrechterhaltung von kurzzeitigen Alarm- und Auslösestromkreisen. Die Relais- und LED-Anzeige bleibt aktiviert, bis die Taste zum manuellen Zurücksetzen gedrückt wird.
Merkmale
- Beseitigt problematische und vorübergehende Relaisaktionen
- Eliminates the difficulty of controlling alarms and other peripheral devices with momentary or chattering contact signals
- Configurable for use varying applications
- One model configurable for either 48, 125, 250 VDC or 120, 240 VAC
- Mounting footprint and wiring is compatible with existing installations of similar devices
- Two independent relays provide simultaneous operation for control functions
- Corrosion resistant materials and rugged design provide a long service life
- Stainless steel cover protects components
- Printed circuit board provides high reliability
- Seal-in function controlled by solid state device
- Trip circuit contacts are protected by surge suppressor
- Wiring connections and jumper configurations are printed on shield
- Convenient jumper plug allows easy adaptability to various supply line voltage and current types
- Red LED indicates actuation of relay
- Yellow LED indicates a short in the switch or faulty wiring
Optionen
- Explosionsgefährdete Bereiche Schutzklasse 1/Division 2
Applications
For power transformers or any other applications which require a momentary contact signal to be maintained. Can be configured for use in AC or DC applications.
